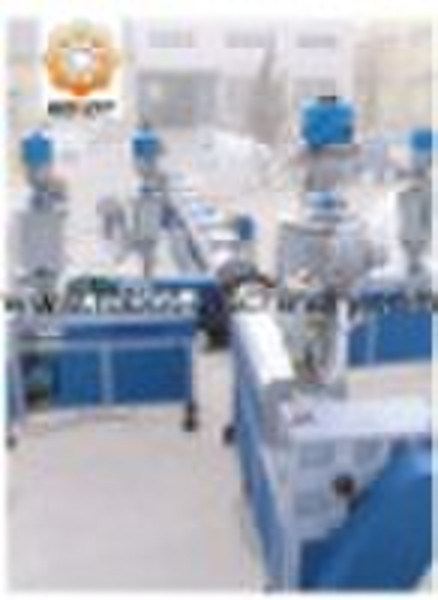

PVC DRAIN PIPE PRODUCTION LINE

SJSZ 51/105 Conical twin screw extruder Diameter of screw 51/105 m Speed of screw 2-32 r/min Efficiency length of screw 1070 m Power of main motor 18.5 kw Heating power of barrel 12.1 kw Output of extrusion ≥100 kg/h Central height of machine 1000 mm weight 2500 kg dimension 3500 x 1500 x 1600 mm Regulating Type of main motor Frequency conversion Regulating Type of feeding motor Frequency conversion Regulating temperature type of barre Heating: cast aluminum heater Cooling: 3 sections cooled by air Material of barrel and screw 38CrMoAlA Azotizing on surface 0.4 0.7mm Rigidity: above 700 HV Driving type Hard tooth face gearbox vacuum exhaust system 1.5kw watering circle vacuum pump Die head and moulds Specification 12 ,20,32 ,40 ,50 ,63 mm Material Forged steel calibration ring: cast copper Stainless steel vacuum calibration tank Power of vacuum pump motor 3kw×1 water-ring vacuum pump Power of water pump 3kw×2 Power of lengthways motor 1.1kw cycloid Material Stainless steel Position and method of cooling spray 4 sets spray Material and quantity of muzzle ABS x 200 pcs Dimension 6000 x 650 x 1400 mm Caterpillar haul-off machine Speed of traction 0.5-3 m/min Power of haul-off motor 2.2 kw Effective length of caterpillar 1000 mm Timing method of haul-off motor Frequency conversion Center height 1000 mm Dimension 1400 x 800 x 1600 mm Pressure of pressed air ≥0.6 MPa Auto cutting machine Belling type 12, 20,32 ,40 ,50 ,63 mm Belling scope 1.5 kw Heating power ≥0.6 MPa Cooling method saw Power of hydraulic pressure 1500 x 1000 x 1600 mm stacker Type of stacker Pneumatic length 5 m Control way Auto Pressure of compressed air ≥0.6 MPa Dimension 5000 x 800 x 1200 mm Powder feeder ZJF300 Power of motor kw 1.5 Transport ability kg/h 300 Hopper ability kg 120 Diameter of elastic mm 36 Max transport kg/h 450 Storage ability kg 150 Feeding pipe and elastic ability m 3-5 full-auto belling machine (U-type) Belling scope 12,20,32 ,40 ,50 ,63 mm Heating power 25kw Cooling method Water cooling Power of hydraulic pressure 4kw Total power 36kw
